Low Voltage Fuse LINK

Low Voltage Fuse LINK
Low Voltage Accessories VOLT Low voltage circuit Breakers LV Products SEC LV Types Substations

Product details

Overview

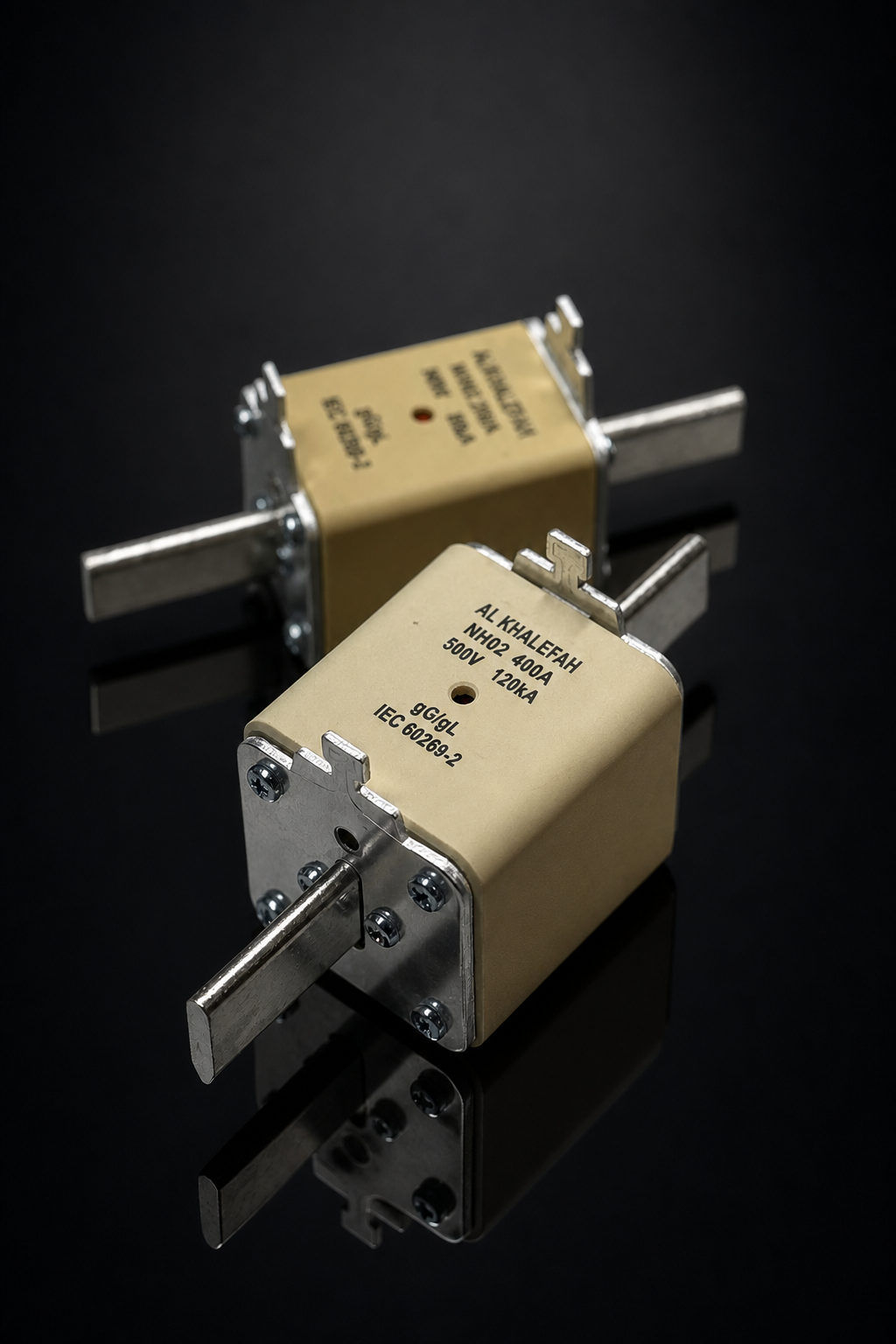

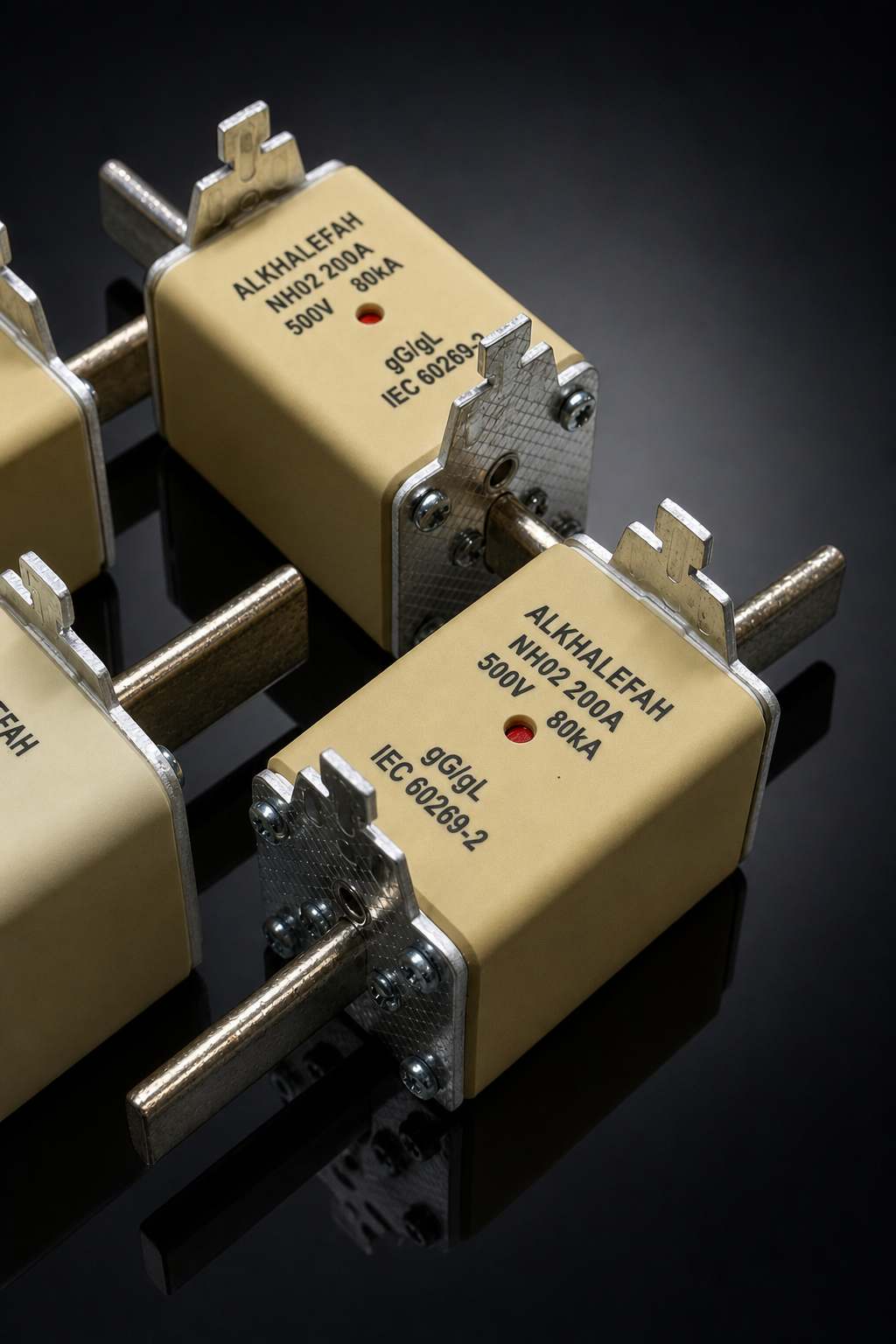

Low Voltage Fuse Link designed to protect power lines and electrical equipment against overload and short-circuit conditions in low-voltage distribution systems, delivering high breaking capacity and reliable performance.

Key Features
Manufactured with a high-strength ceramic body for excellent resistance to internal pressure and thermal shock. Knife contacts are made of tin-plated copper or brass for reliable conductivity and corrosion resistance. Provides high breaking capacity and precise selectivity for effective circuit protection.

Applications
Suitable for cable and conductor protection, motor protection, semiconductor protection, and industrial electrical equipment.

Technical Specifications

  • Rated Voltage: up to 500V / 690V AC or 440V DC
  • Rated Current: 2A to 1250A
  • Breaking Capacity: up to 120kA
  • Protection Classes: Cable protection, motor protection, and semiconductor protection.

Standards
Manufactured in accordance with IEC 60269, DIN, and GB standards, with CE and RoHS certifications.
